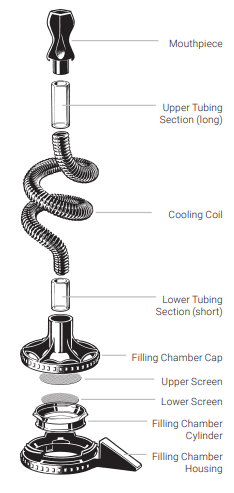

Disassembling & Assembling

Pull the Mouthpiece and the Tubing Section off of the Cooling Coil with a gentle twist.
2. Pull the Tubing Section off of the Mouthpiece with a gentle twist.

💡 Reassemble in reverse order.

►  Before assembling allow all component parts to dry properly.

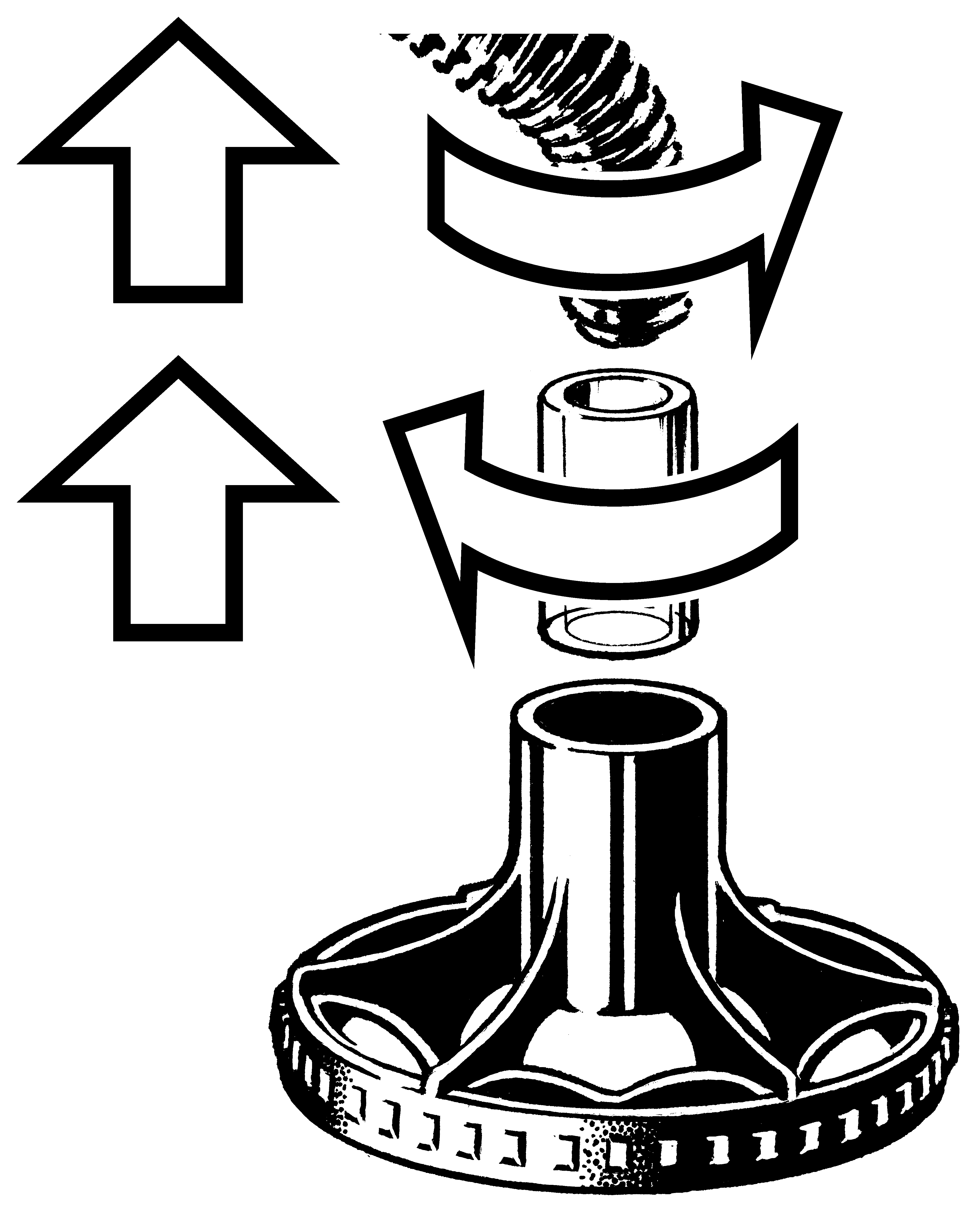

Pull the Cooling Coil out of the Filling Chamber Cap with a gentle twist, and then remove the Tubing Section from the Cooling Coil.

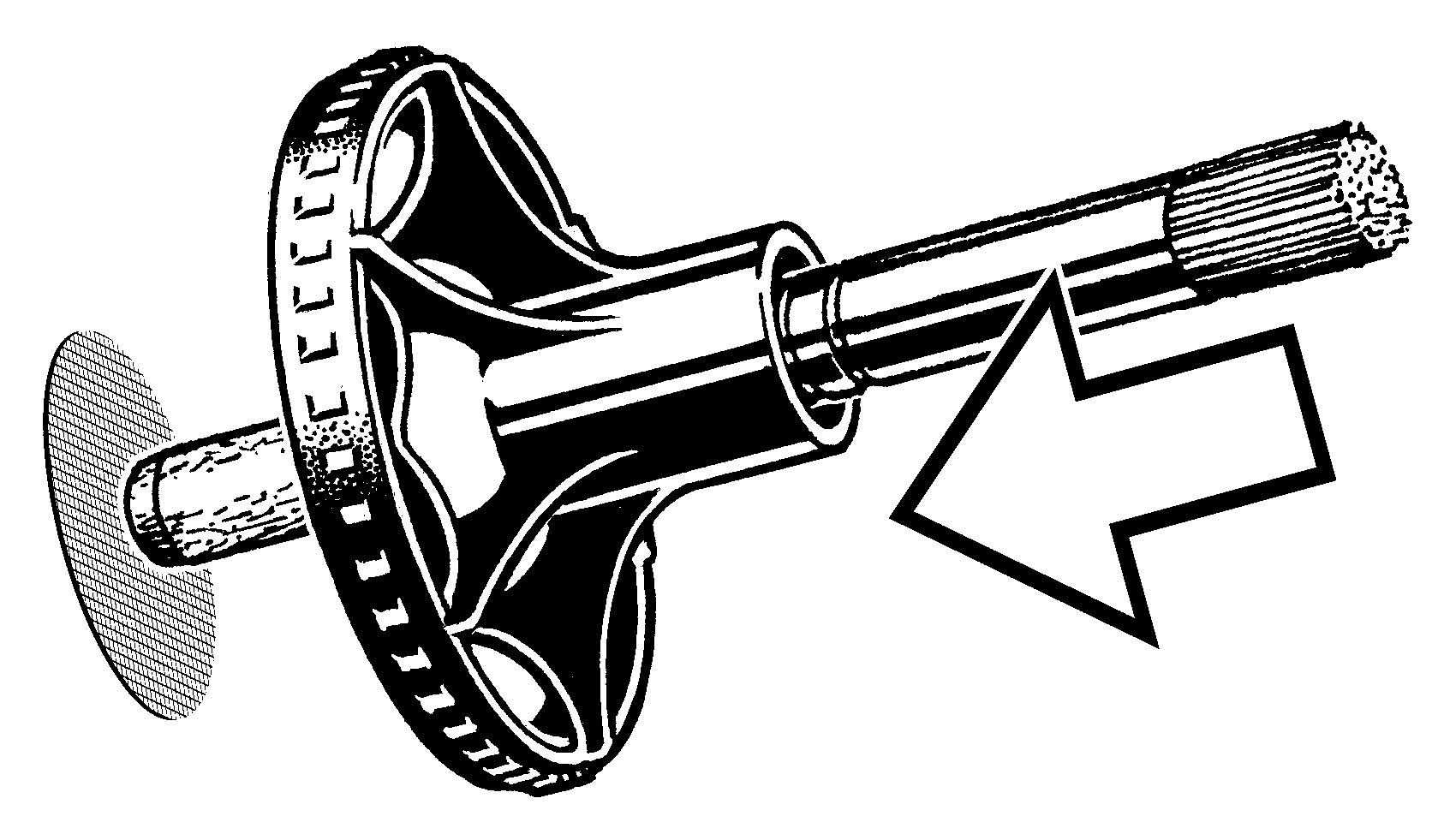

Push the upper Screen out of the Filling Chamber Cap from above, by using (for example) the handle of the included Cleaning Brush.

💡 Reassemble in reverse order.

►  The upper Screen must be inserted carefully into the groove provided. Disregarding this may allow plant particles to enter the Cooling Coil, so blocking this or be inhaled.

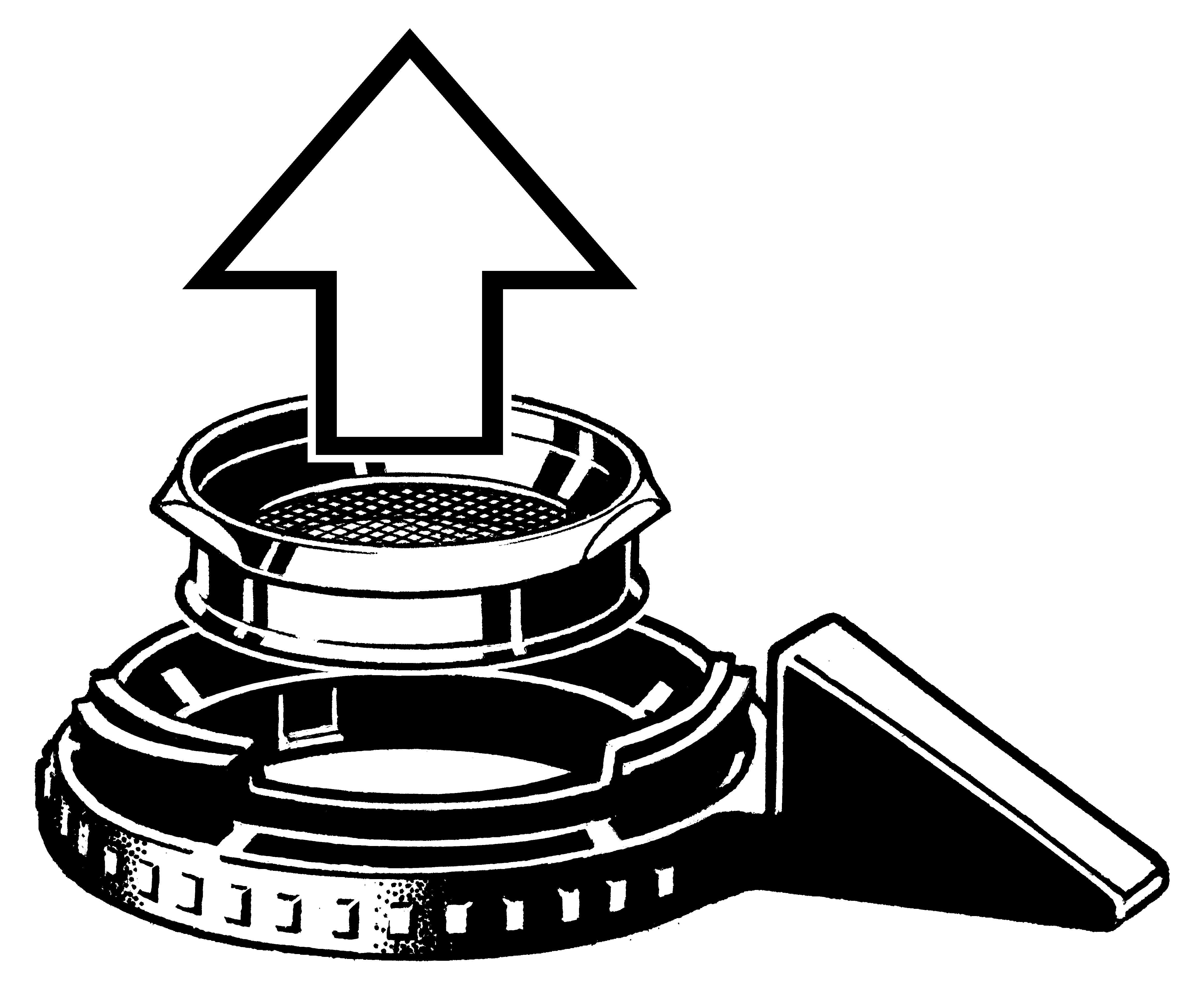

Push the Filling Chamber Cylinder upwards out of the Filling Chamber Housing.

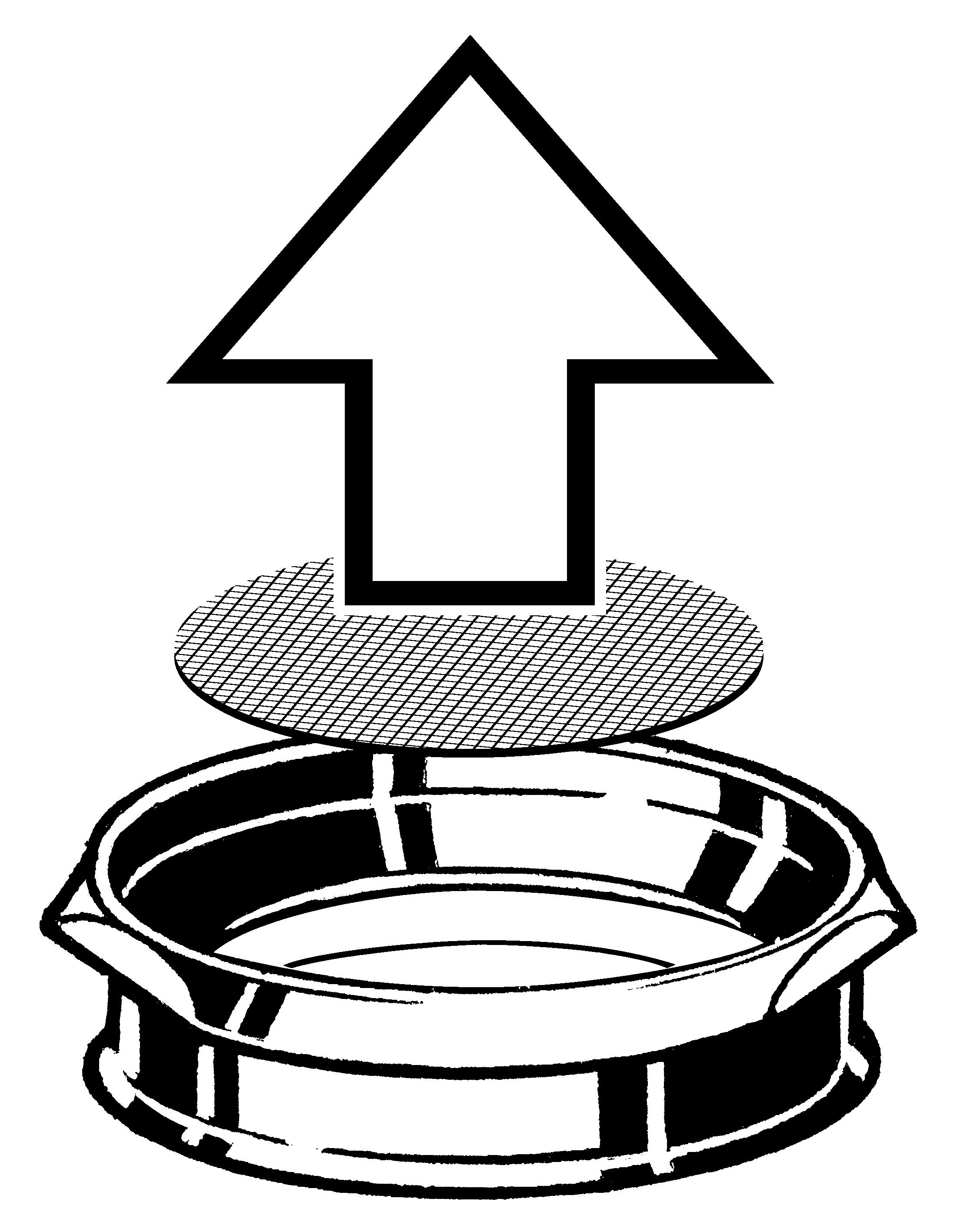

Push the lower Screen upwards out of the Filling Chamber Cylinder.

1. Place the Filling Chamber Cylinder into the Filling Chamber Housing from above, and turn it so that the flattened positioning surfaces are located in the intended orientation within the Filling Chamber Housing.
2. Push the Filling Chamber Cylinder in until it latches into the Filling Chamber Housing. Make sure the positioning surfaces are oriented correctly, as shown in the detailed illustration.
3. Put in the Screen into the Filling Chamber from the topside
4. Screw the Filling Chamber Cap with Cooling Coil and Mouthpiece onto the Filling Chamber.
