- Use only compatible accessories from STORZ & BICKEL.
- Make sure all flammable vapors (e.g., from cleaning agents) have evaporated before using the device.
- Ensure that the power supply matches the device's rating plate.
► Do not operate the device near flammable materials or in damp areas.
| 1. Unscrew the Filling Chamber lid counterclockwise from the Filling Chamber Housing. |
|
| 2. Fill the Filling Chamber with the desired amount of herbs. |
|
| 3. Screw the Filling Chamber lid clockwise onto the Filling Chamber Housing. |
|
| 4. Place the Filling Chamber with lid onto the Vaporizer and screw it tight clockwise. |
|
| 5. To turn on the heater, press the Heating touch button (HEAT). |
|
|
6. When the actual and target temperatures match, the vapor is ready for inhalation. |
The device can be used either with the EASY VALVE balloon or the hose set (without activating the air pump).

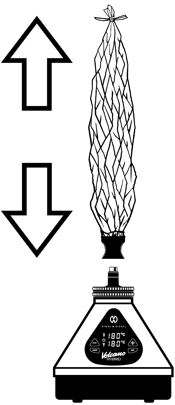

- When the actual temperature matches the target temperature, pull the balloon taut.
Place the Valve Balloon vertically on the Filling Chamber.
-

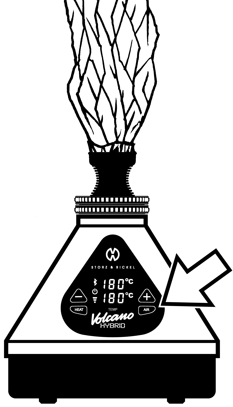

Turn on the pump by pressing the Pump touch button (AIR).
Once the balloon is filled with the desired amount of vapor, turn off the air pump.
-

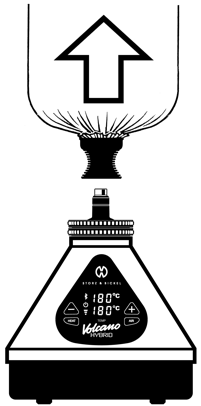

Remove the balloon from the Filling Chamber.
Unscrew the Filling Chamber from the Vaporizer. Caution: Only handle by the surrounding knobs!
Place the Filling Chamber on a heat-resistant surface.

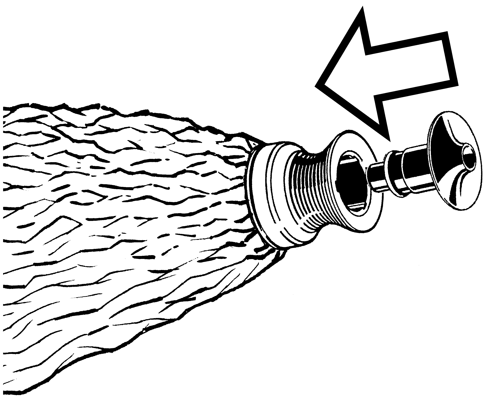

- Insert the Mouthpiece into the valve.
- Start inhaling immediately.
Press your lips gently against the Mouthpiece.
Breathe in evenly for a few seconds and only as much as half as possible.
- Turn off the pump before using the hose.
- Place the hose with hose elbow directly on the preheated Filling Chamber filled with vaporizing material instead of the balloon.
- Attach the Mouthpiece to the hose.
-
Inhale the vapor slowly from the hose for a few seconds.
|
► Do not blow into the hose. ► Always use a hose longer than 1 meter to ensure adequate cooling. ► Replace the hose every two weeks for hygiene reasons. ► The hose should not be used by multiple people! |
Device Makes Noise
A specific noise pattern from the air pump while the heater is off is normal and does not affect functionality. If in doubt, turn off the device and register your device for an RMA.
- Check the target and actual temperature.
- Make sure the Filling Chamber and/or Valve Balloon are properly attached.
- Check if fresh, unused plant material is present in the Filling Chamber.
- Check if the screen in the Filling Chamber lid is clogged or not properly seated in the notch.
- Check if the Filling Chamber has been cleaned according to the instructions for use.
