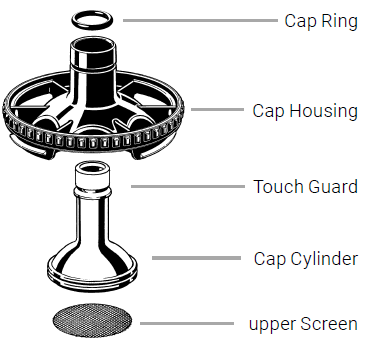

Disassembling and Assembling the Filling Chamber Cap
- Press the upper Screen out from top to bottom using the handle of the supplied Cleaning Brush.
- Pull off the Cap Ring. Press the Cap Cylinder downward out of the Cap Housing.
Assembly is done in reverse order:
- Slide the Cap Cylinder into the Cap Housing and let it snap into place.
- Pull the lid ring from above over the Cap Cylinder.
- If you are using ground plant material, press the upper Screen from below into the Cap Cylinder and let it snap into the designated groove.
⚠ CAUTION: The upper Screen must be carefully inserted into the designated groove. Otherwise, plant particles may enter the valve balloon or Tube and be inhaled.

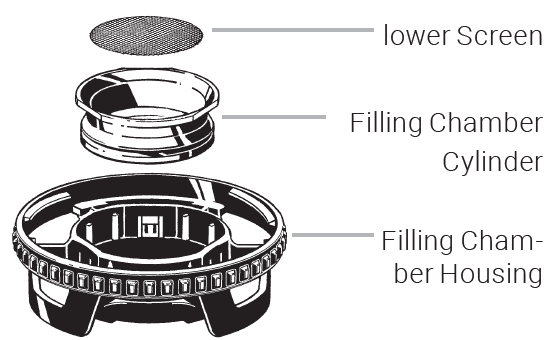

Disassembling and Assembling the Filling Chamber
- Press the Filling Chamber Cylinder with Screen or Drip Pad upward out of the Filling Chamber Housing.
- Press the lower Screen upward out of the Filling Chamber Cylinder.
Assembly is again done in reverse order:
- Press the Filling Chamber Cylinder from above into the Filling Chamber Housing and let it snap into place. Insert the lower Screen or drip pad from above into the Filling Chamber Cylinder.
- Screw the Filling Chamber lid clockwise onto the Filling Chamber.
Disassembling and Assembling the Tube Kit
Pull the Tube Flexer and the Mouthpiece off the Tube.
Assembly is again done in reverse order:
To assemble, simply attach the Tube to the Tube Flexer and the Mouthpiece to the other end of the Tube.
