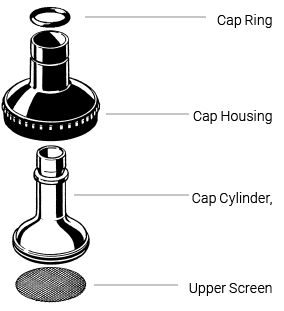

Disassembly of the Filling Chamber Cover

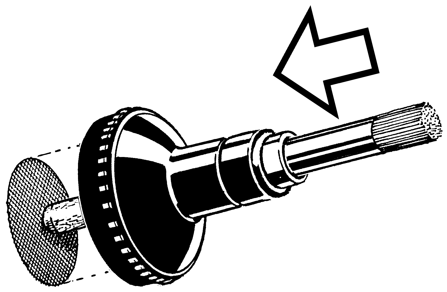

Press the upper screen downwards with the handle of the supplied cleaning brush.

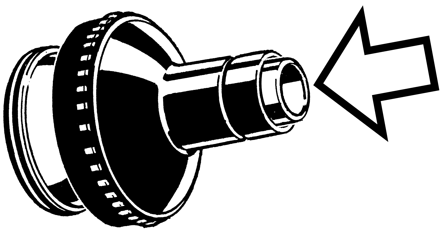

Pull off the cover ring. Press the cover cylinder down out of the cover housing.
Disassembly of the Filling Chamber
- Press the lower screen upwards out of the filling chamber cylinder.
- Press the filling chamber cylinder upwards out of the filling chamber housing.
When the filling chamber cylinder is pressed out, the three filling chamber clips are loosened and fall out of the filling chamber housing.
Assembly of the Filling Chamber
- Press the filling chamber cylinder from above into the filling chamber housing and let it snap into place.
Insert the filling chamber clips into the designated openings at the base of the filling chamber housing.
► Make sure that the filling chamber clips are properly positioned as shown in the illustration.- Insert the screen from above into the filling chamber.
- Screw the filling chamber cover onto the filling chamber.
